FC-08T TCP/IP Converter
TCP/IP Converter is a multi-protocol converter that can virtualize FC-08T into a COM port of a computer to connect to a TCP/IP network to communicate with devices.

Through the VMS software, you can virtual the FC-08T TCP/IP converter to be one of computer’s COM ports, TCP/IP converter is used as the converter between the TCP/IP and RS232 or RS485, realize the communication between device and software by TCP/IP converter without rewriting the software.

Product Introduction

TCP/IP Converter

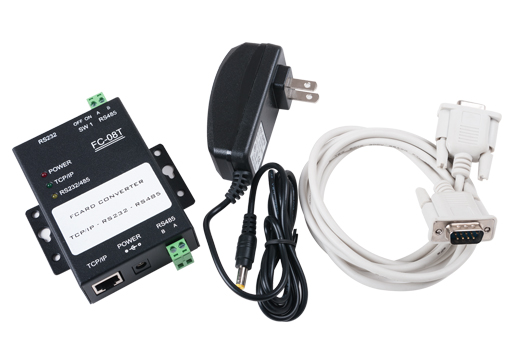

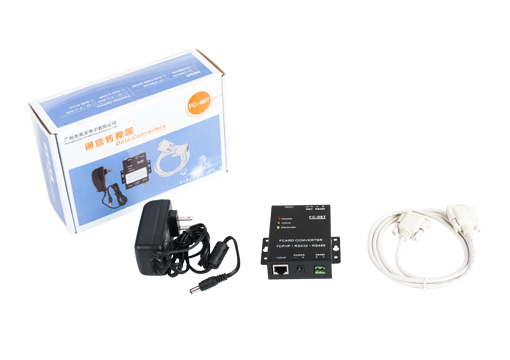

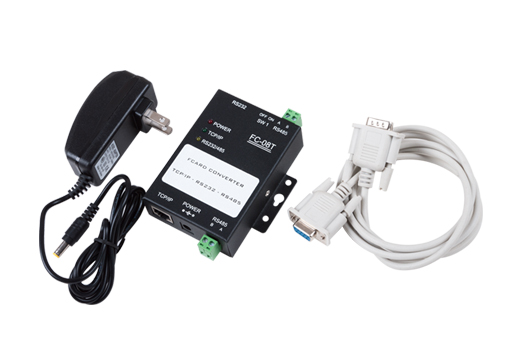

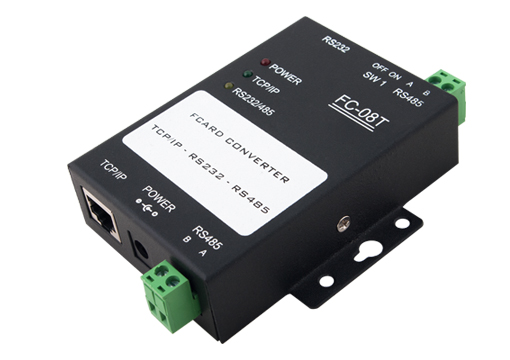

FC-08T TCP/IP converter


FC-08T TCP/IP converter is a multifunctional communication converter ( RS232 to RS485, TCP/IP to RS485, TCP/IP to RS232, RS485 repeater function ). This product is designed by Guangzhou Fcard Electronics Co.,ltd, in order to enhance the communication signal conversion of the device to device, device to computer, device access to TCP/IP and etc.

Through the VMS software, you can virtual the FC-08T TCP/IP converter to be one of computer’s COM ports, let your system communicates with device that support RS232 or RS485 by TCP/IP converter , ( FC-08T TCP/IP converter is used as the converter between the TCP/IP and RS232 or RS485 ), realize the communication between device and software by TCP/IP without rewriting the software.

This TCP/IP converter can transparently convert the single-ended RS-232 signal to balance differential RS-485 or TCP/IP signal, at same time, has function with auto identify auto recognize the RS485 signal without manual operation. The connection of RS485 can be point-to-point, point to multipoint. 128 device can be connected when Point to multipoint. This converter is the best choice of the outdoor system extension.

Except the data conversion of the RS232 to RS485, TCP/IP to RS485, TCP/IP to RS232, the FC-08T TCP/IP converter also supports the signal amplification ( repeater) function, make the communication distance more far.

The FC-08T TCP/IP converter series products we manufactured are divided into two different model: standard model ( not support the TCP/IP) and another model ( support the TCP/IP),please note when purchasing.


Technical Parameter:

Size: 115 mm * 85 mm * 27 mm

External voltage 9 v to 12 v

Working Current 100 mA

Working Temperature: - 10 ? C - 50 ? C,

Humidity 5% to 95%.

Interface Features: compatible with EIA RS232C/RS485 standard, 10 MTCP/IP

Transfer Rate: 300-256000 BPS adjustable

Transmission distance: RS232 (> 15 meters), TCP/IP (> 100 m), RS485 (> 1200 m)

Transmission medium: RS232/485 special shielded wire, TCP/IP network

Protection grade: RS485 interface support, 600W surge protection , 15KV esd protection, 3500V isolation voltage

Electrical interface: RS232C interface (DB orignal), RS485 interface (two terminals), TCP/IP interface (RJ45 terminal)


Wiring Diagram:

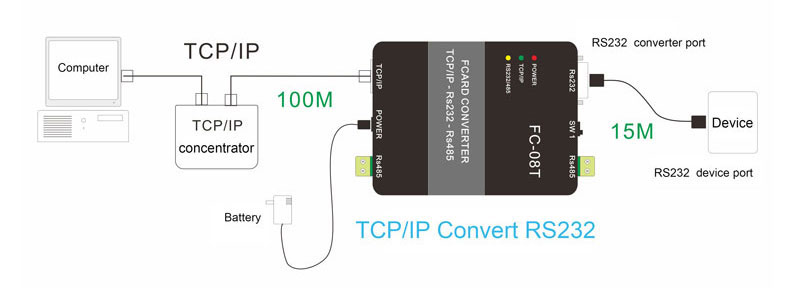

TCP/IP convert RS232:

TCP/IP Converter RS232

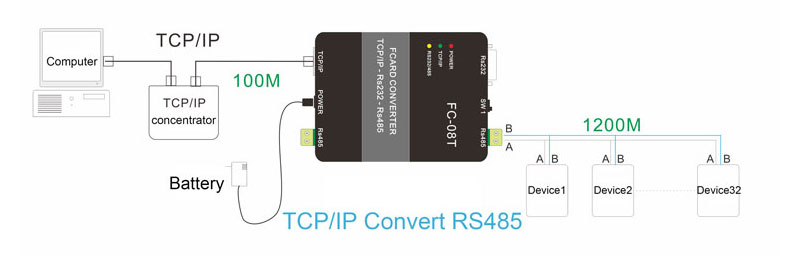

TCP/IP convert RS485:

TCP/IP Converter RS485

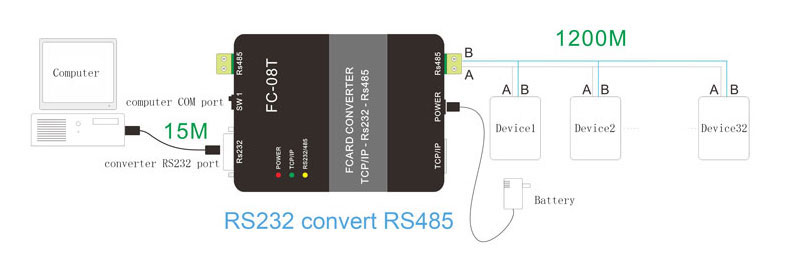

RS232 convert RS485:

RS232 Converter RS485

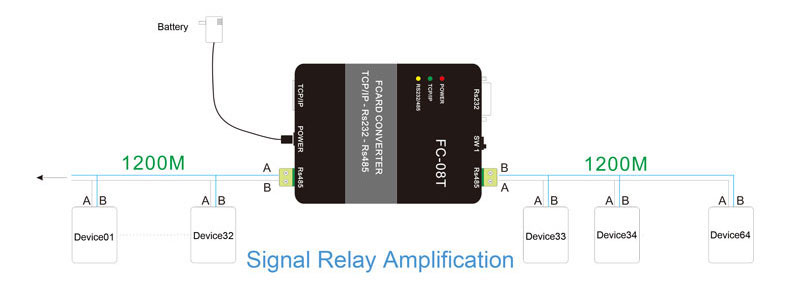

RS485 convert RS485:

TCP/IP Converter RS485 Repeater

Compatible with FCARD one card management system. Support: Access Control System, Offline Access Control System, Access Control & Time Attendance, Guard Tour,Canteen POS System, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management,to realize one card management system with one card and one database.
