How to Connect the Card Reader Line
2016-11-10 11:37
Details of the problem:
We purchased a new set of FC-8810 access control board with your agent, and we want to use the original access control card reader, our card reader model is HID6005B, how to wire it, thank you
Expert answer:

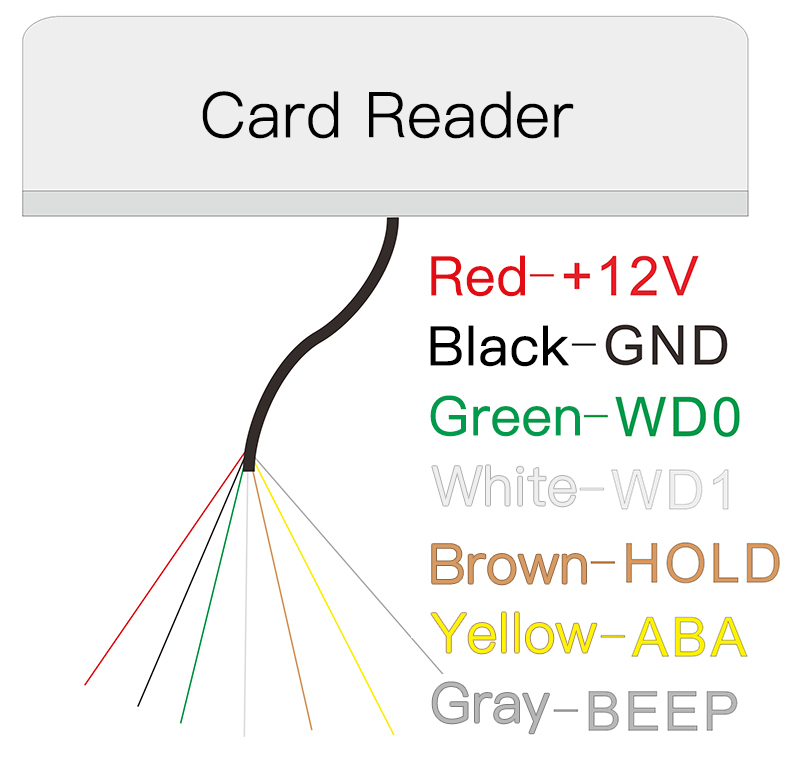

Hello, thank you for using our company's access control products, the connection diagram of the HID card reader 6005B and FC-8810 access control board is as follows, and hope to help you.
