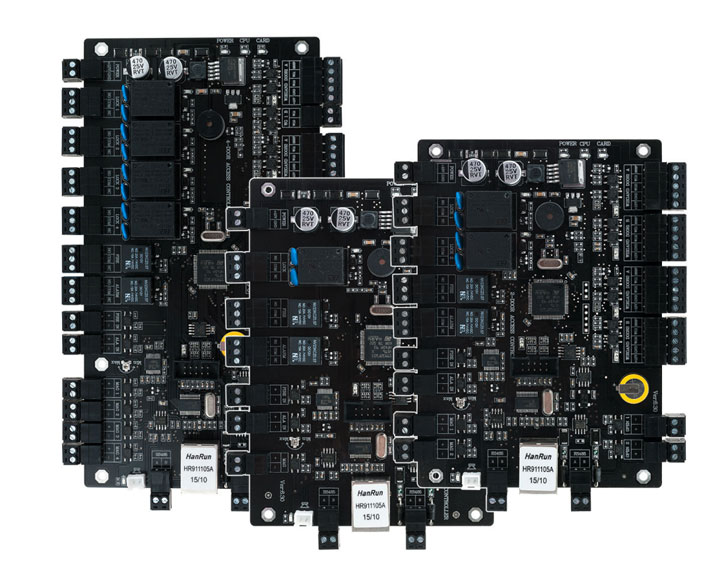

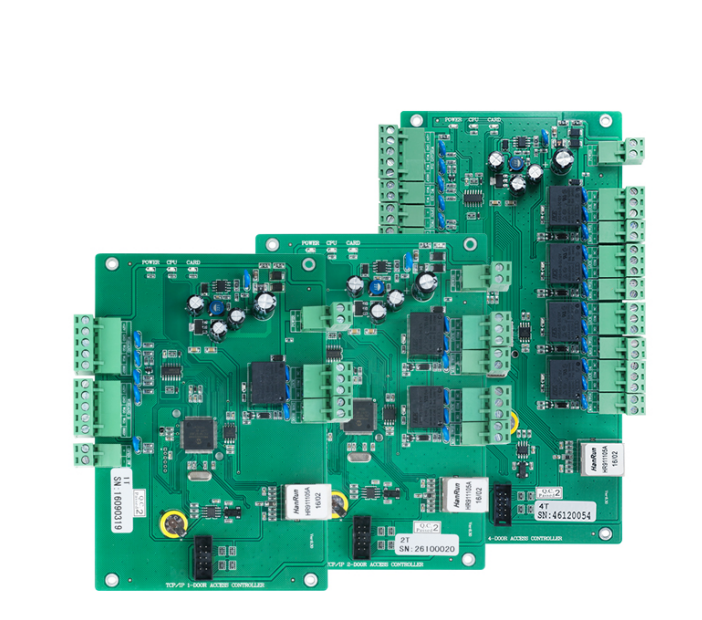

Access Control Board Firmware Optimization Notice
MC-58 series and other similar products:
Latest Firmware Version REV: 7.65
Optimization functions as following content:
1.The temperature alarm value can reach 85 degrees, and it will alarm after it exceeds 85 degrees. (75 degrees before optimization, there are many outdoor applications where it exceeds 75 degrees.)
2.The "Default" of the detection locking changes "OFF". (Currently, this function is rarely used, and many customers suggest setting it to be closed by default)
3.Compatible with tamper alarm card reader. After the card reader is disassembled, the controller is compatible and supported the alarm data.
4. Optimize regional interlock function
5. Optimize the regional anti-pass back function
6. Deal with 8 errors.
FC-89 series and MC-59 series:
Latest Firmware Version REV: 7.15
Optimization functions as following content:
1. The temperature alarm value can reach 85 degrees, and it will alarm after it exceeds 85 degrees. (75 degrees before optimization, there are many outdoor applications where it exceeds 75 degrees.)
2. The "Default" of the detection locking changes "OFF". (Currently, this function is rarely used, and many customers suggest setting it to be closed by default)
3. Compatible with tamper alarm card reader. After the card reader is disassembled, the controller is compatible and supported the alarm data.
4. Optimize regional interlocking function
5. Optimize the regional anti-pass back function
6. Add the regional fire linkage function. (The first main board connects to the fire alarm, and other online access control systems can be notified through the network to link together)
7. Add dynamic QR code algorithm, support dynamic QR code encryption, which realizes WeChat mini program to open the door.
8. Change the maximum 5 bytes of the card number before optimization to 8 bytes, which is compatible with the WG26\34\66 protocol, which can be said to be compatible with the identification card number.
9. Optimize the function of opening password, the new password supports the validity period and the limit of valid times.
10. Optimize the legal card to choose whether to support the alarm cancellation function.
11. The access control board adds the board detection and tamper alarm function.
12. Improve the remote upgrade function, at present, the system has added remote upgrade to high-end system products, which is stable and reliable.
13. Optimized and compatible with the new automatic test: Support one-key coordination detection, all ports, power consumption, lighting, sound, data storage, etc. are fully automated and unmanned testing.
14. Optimize the illegal card reading alarm function, and add the illegal card reading N times alarm mode. (1-255 times optional)
15. Optimize the function of actively contacting the cloud platform and strengthen the reliability of communication with the cloud platform.
16. Change the communication data encryption mechanism to make the communication in the wide area network more secure.

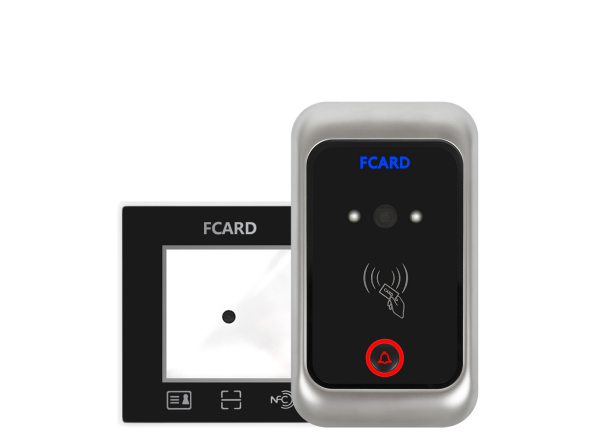

FC-86X series QR code readers:
Latest Firmware Version REV: 3.15
Optimization functions as following content:
1. Solve the problem of compatibility with fake Wiegand boards.
2. Optimize the reading distance of compatible CPU cards and Identification cards.
3. Optimize WG output timing and strengthen communication compatibility.
