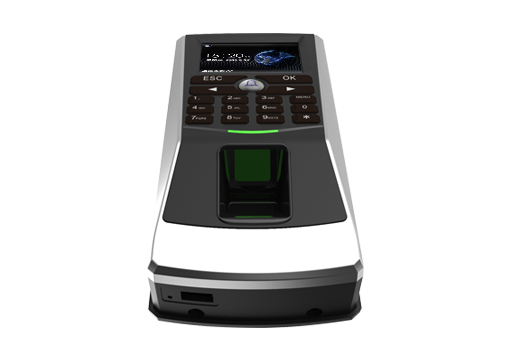

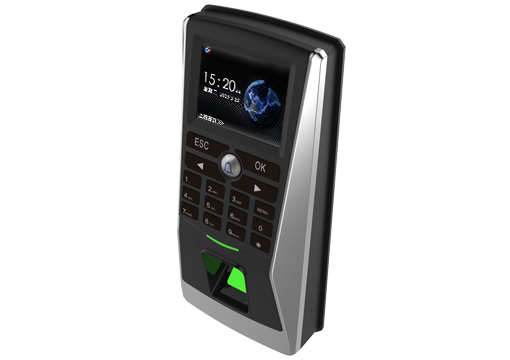

FC-A102 Fingerprint Access Controller
FC-A102 is a fingerprint access controller, which supports networked access control and attendance, as well as independent work. It adopts multi-core ARM processor, integrates massive memory, built-in live fingerprint recognition circuit, supports high-speed recognition and rejection of fake fingerprints. Fingerprint recognition time <1S, adopts 2.8-inch TFT color screen, supporting 5000 fingerprints, 5000 cards, 5000 passwords, 200,000 records (can be customized to support ID card or Mifare card), TCP/IP networking, RS485 networking, supporting 1 set of door opening relays , 1 group of door sensor, 1 group of alarm output, support U disk backup data, support cloud platform. Simplified Chinese and English (other languages can be customized).
Model: FC-A102E, FC-A102M
Working Temperature: 0-70℃
Working Humidity: 20-80%
False Recognition Rate: < 0.0001%
Rejection Rate: < 0.01%
Working Voltage: DC12V (9-14V)
Display: 2.8 inch TFT color screen
Verification Mode: 1:N, 1:1
Registration Way: Fingerprint, Password (Can be customized to support ID card or Mifare card)
Working Mode: Time attendance access controller
Fingerprint Acquisition Area: 16 x 14 mm
The Acquisition Angle Range: ± 45°
Speed: < 1S
Capacity: 5,000 fingerprints, 5,000 cards, 5,000 passwords, 200,000 records
Communication Port: TCP/IP, RS485, USB
Controller Port Protocol: Wiegand26
Size: 89 x 198.5 x 45 mm

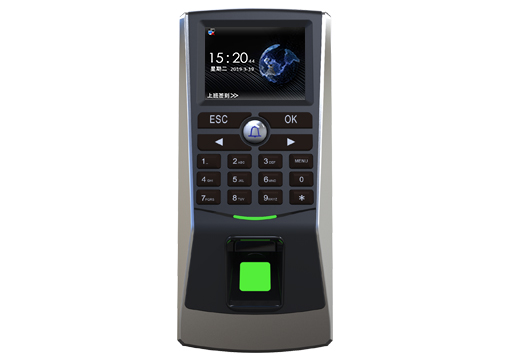

FC-A102 Fingerprint Access Controller
Product Advantages:
1. Living Fingerprints
2. High Speed Algorithms
3. Support TCP/IP Communications
4. 2.8 inch screen
5. Support Cloud system management

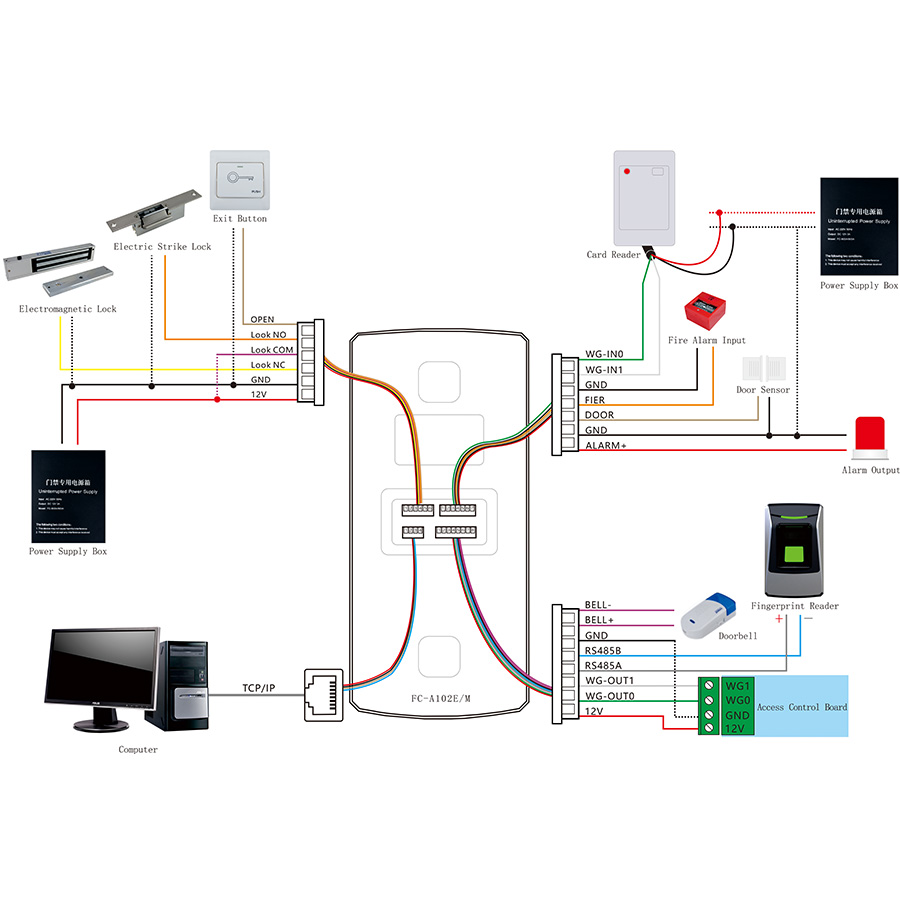

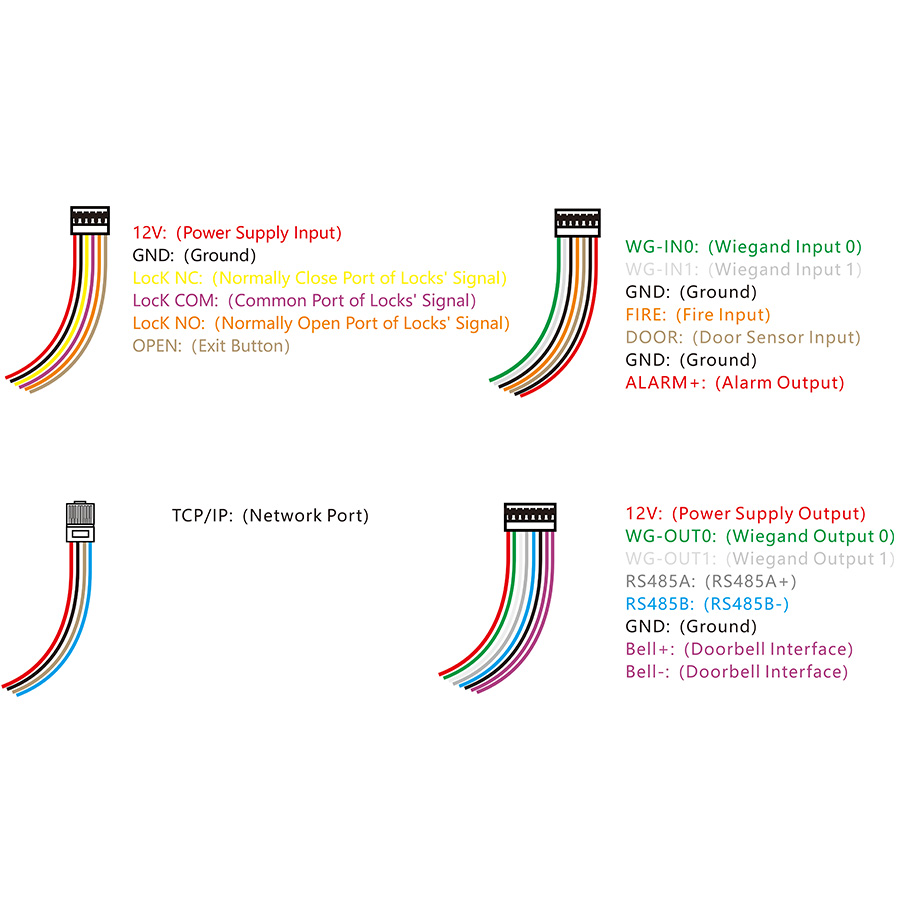

Wiring Diagram：

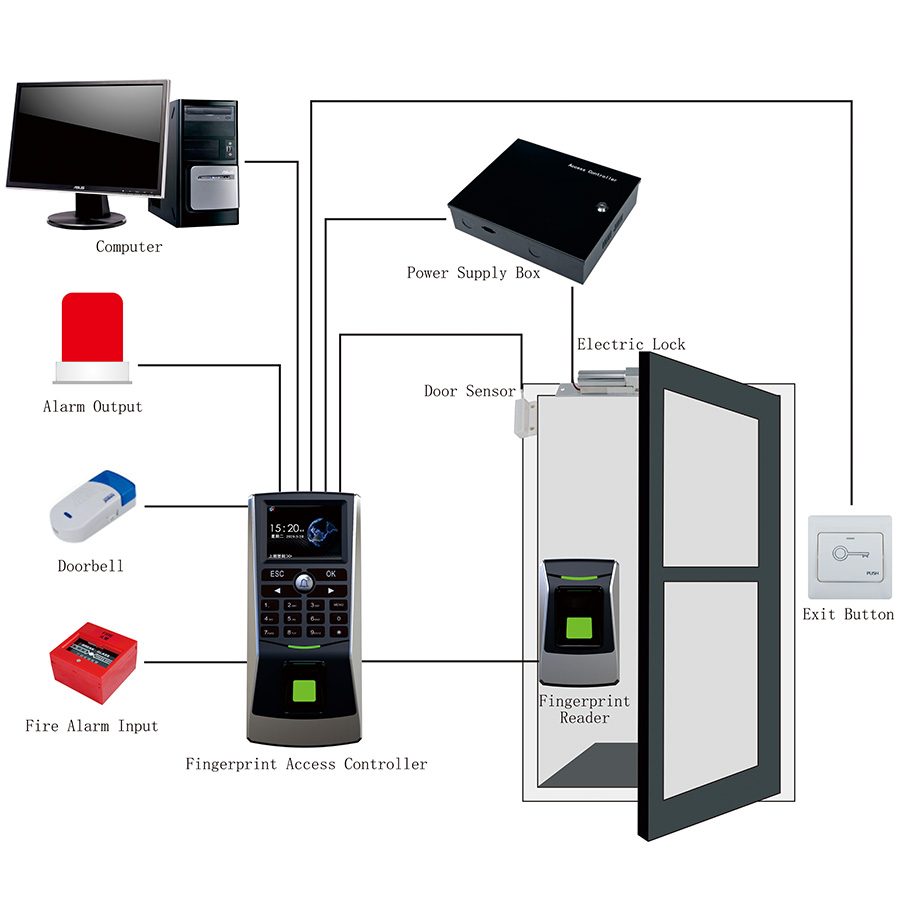

System Structure：

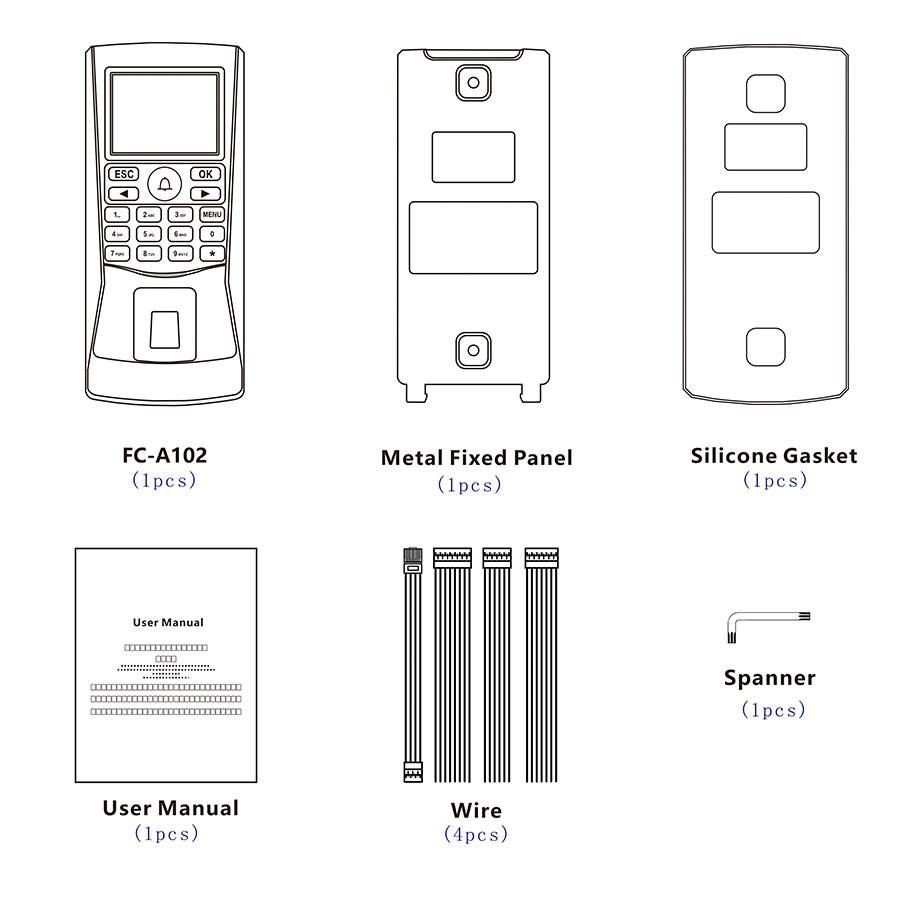

Accessories：
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
