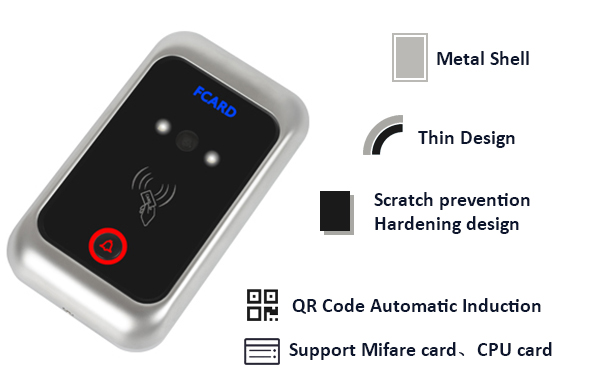

FC-863MS has a thin body with a curved surface, a stylish and simple appearance, a scratch-resistant acrylic hardened design, and a smooth metal body structure, which fully highlights the high-end of the product.
QR Code Card Reader adopts advanced RFID receiving circuit design and embedded micro-controller image recognition, supporting QR code, Mifare card, Identification card, CPU card, bank card, NFC card, with high receiving sensitivity, low working current, single DC power supply, low price, high performance.
This series of QR code card reader can recognize the QR code on the paper and the phone's screen. It can be widely applied in access control system, turnstile system, consumption system, mobile boarding areas such as QR code, suitable for all kinds of application of high performance and multi functions tool of QR code and data acquisition card. It uses the Datalogic Scanning the latest digital imaging technology, can be quickly read 1D and 2D identification number.
1. Types of Scanning and Decoding Support:
One-dimensional Codes: UPC-A, UPC-E, EAN-13, ISBN13, EAN-8, 39 code, 128 code, crossover 25 code, etc
QR Code: QR code, etc.
2. Support Mifare Card, ID card, identification card, CPU card, bank card, mobile phone NFC and other cards
3. Interface Output: Wiegand 26/34/66 output, RS485 output
4. Power Input: DC9~14V power supply
5. QR Code Trigger Mode: automatic induction
Working Temperature: - 10 ℃ to 70 ℃
Working Humidity: 5%-95%
Product Performance: 1GHz main frequency CPU
Operating Current: <500MA
Prompt Mode: LED flashing green light, buzzer prompt
Scanning Angle: the Angle + 55 °, 360 ° rotation
QR Code Reading Distance: 1-20cm
Resolution: 640*480
Appearance Size: 140x80x21.5mm
Product Advantages:
1. Strong recognition ability, can read mobile phone screen, paper and other types of QR code and one-dimensional code.
2. High-speed reading, for a variety of mobile phone LCD screen and paper, as long as within the scope of the recognition window, can achieve high-speed reading.
3. Powerful identification method, support QR code, Mifare card, Identification card, CPU card, bank card, NFC card.
4. Strong data interaction ability, Wiegand 26/34/66,RS485 and other data output.
5. It supports DC9-14V power supply and is easy to use and install.
6. FC-863MS QR code access control curving thin body, stylish and simple appearance, anti-scratch acrylic hardening design, smooth metal body structure, fully highlight the high-end products.
Appearance Size：
Scanning Diagram of QR Code:

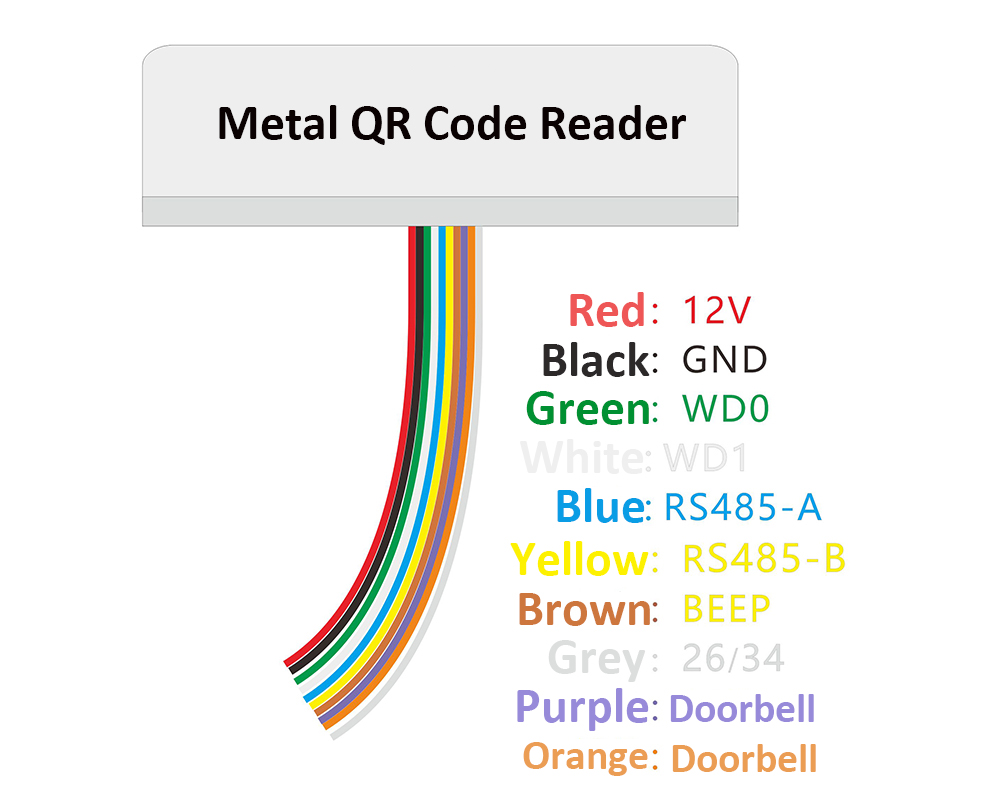

Wiring Diagram:

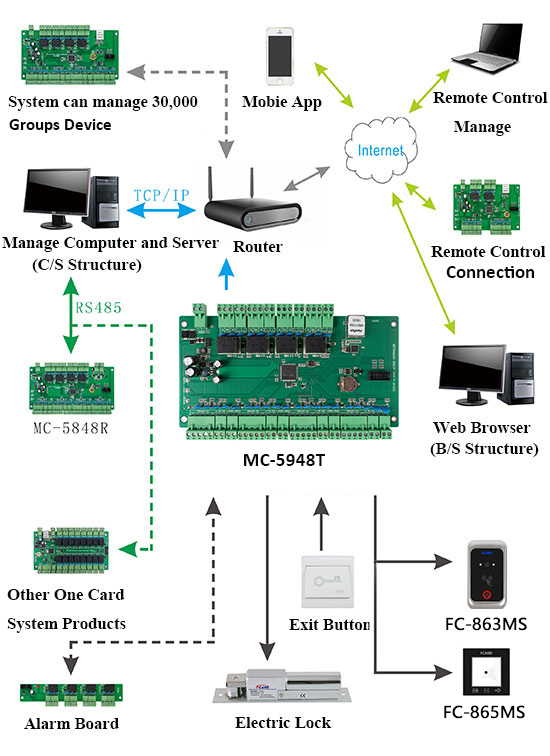

Wiring Connection Diagram:

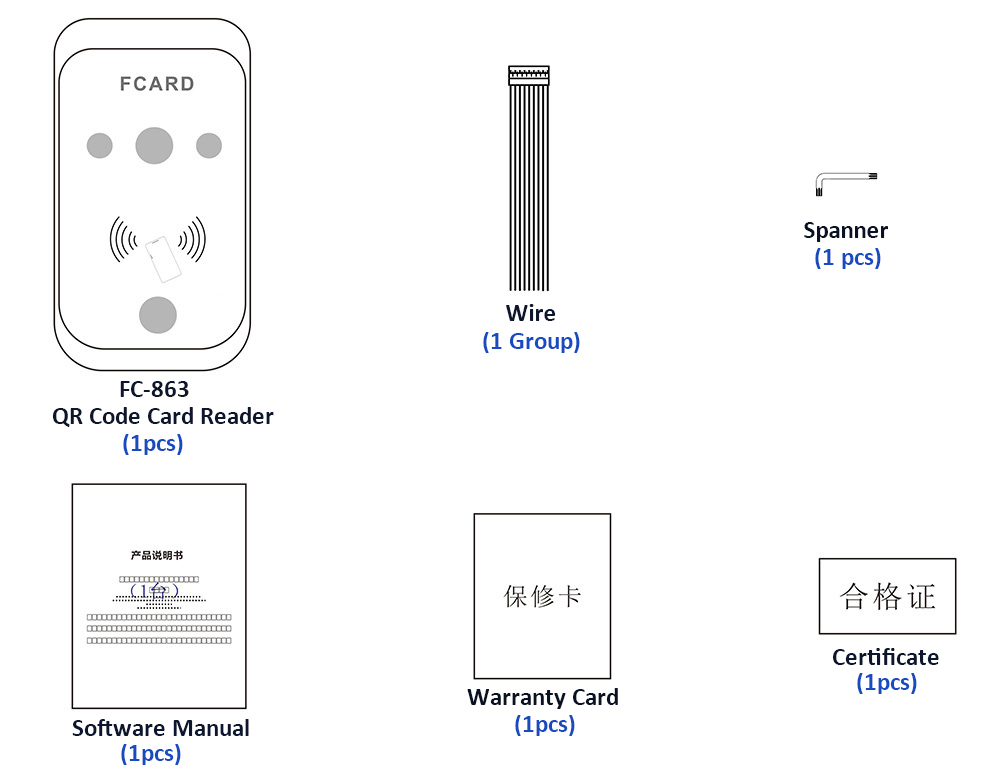

Parts List:
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attencdance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
