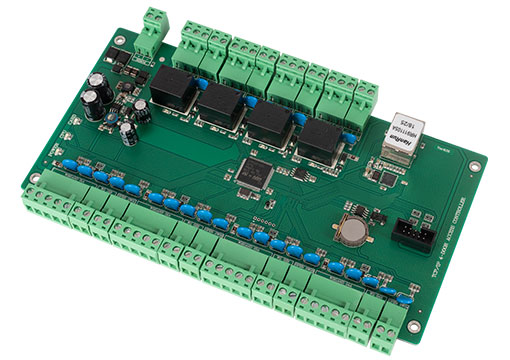

MC-5948T four doors access control board (TCP/IP communication mode)

MC-5948T Four doors access control board is a new product developed on the basis of MC-5848T. It has all the function of MC-5848T and strengthen the large storage capacity, communication management (five computers can manage simultaneously), support regional interlock, regional himself back, fire linkage, the second generation card card number, dynamic qr code algorithm, reached out to new features such as cloud platform. Adopt 100MTCP/IP communication mode, truly realize networked data management, can manage a door, and support 42,000 user data, 200,000 event record storage, provide a group of 7A lock relay output.

System functions:

MC-5900 series support (standard functions) : Offline operation, read the card to open the door, the password to open the door, time control password valid, read card + password to open the door, the time control card + password valid, manually enter the card number, password to open the door, the first card to open the door, always open card to open the door, open the remote, remote, time to open the door, time normally open, real-time monitoring, abnormal monitoring, electronic maps, duress alarm, fire linkage, police bandit alarm, intrusion alarm, alarm, report the loss of card, card reader to the blacklist illegally card read alarm, open tip/overtime alarm, anti-submarine defense followed, bulk upload, a small amount of upload, two-door interlock, many interlock, multiple CARDS to open the door, keyboard operation, emergency shutdown, access control attendance, 64 Group opening hours, holidays, etc.

MC-5900 series support (professional functions): record card back, repair, prevent detection lock, card read calibration, all card to open the door, open card + all automatic registration, the main board buzzer switch, clock repair itself, the internal and external certification. Open the door, 3+1 to open the door, door number query, report to the police telephone calls after the notification, the device has been running days, remote hardware upgrade, etc.

MC-5900 series support (new function) : in addition to the above functions, we also add technology that is not available or rare for other similar products in the market, such as: Card reader circuit anomaly detection and prompt, temperature detection system environment, and the input power supply temperature on-line monitoring, trial periods, entrance guard patrolling, validity card expired early hint, intelligent clock error corrections, every day out of the door switch controlled by time period, the remote reading card photo, anti-theft alarm host function and interval, door magnetic card reader to the alarm time management, communication encryption data, card number, capacity expands itself, more efficient machine concurrent communication management (maximum 5 computers at the same time control), regional interlock, regional himself back, fire linkage, the second generation card card number, dynamic, take the initiative to contact cloud platform, Wiegand QR code algorithm, Wiegand keyboard issues cards and other new functions.

All of the above models can use FCARD3500 or newer version of the one card pass management system software. The software system supports ACCESS and SQL database, supports local connection communication, and can also remotely communicate with the Internet.

System software:

MC-5900 series access control boards adopt FCARD3500 one card pass management system as the system software. This software supports SQL and ACCESS databases, and supports Windows XP, WIN 2003, WIN 7, WIN10 and other system platforms.

FCARD3500 one card pass management system adopts nine modular structure designs: system data module, system graphic and text monitoring module, personnel management module, access control system module, attendance system module, elevator access control module, guard tour system module, conference check-in module, consumption management module.

It can manage 4 doors, support 4 groups of 26,000 user data, 100,000 event records, (memory card, alarm, door switch, door magnet, system action information records, etc.) provide 4 groups of 7A door lock relay output, 4 groups of door magnet, 4 groups of door switch, 8 groups of Wiegand26/34 card reader interface, 1 group of RS485 communication port. Support DC9V to 14V working voltage, working current < 500mA. This controller provides all functions marked above "system functions".

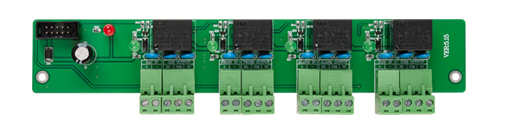

Alarm Extension Board (MC-5800B)

It is mainly used for cooperating with MC-5900 series access control board and alarm linkage: it can be connected with fire alarm input and output, bandit and police input and output, gas alarm input and output, anti-theft alarm input and output and other extended use.

Software Photos:

Add Users

FCARD3500A Ver6.40 version provides: OEM packaging tool, IC Password Edit password sector edit, encryption and decryption tools, device search and test tools, visitor management system, three part control system and ACCESS-SQL database conversion tool etc free tools. Through the SQL database, it can be combined with FCARD5000T POS system, FCARD6000 POS system, parking lot system, which can realize: access control, time attendance, guard tour, elevator, conference check-in, POS, water control, electric control, parking lot charge, vehicle guidance and integration, to achieve one card system, one database management.

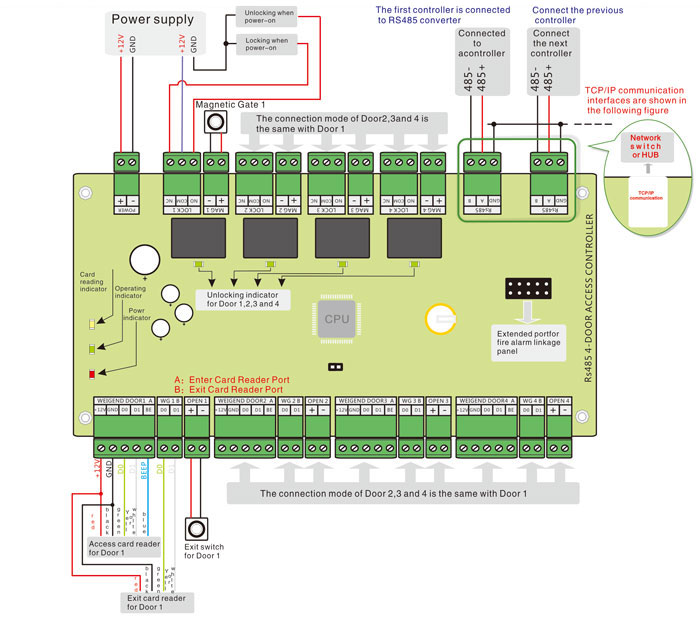

Wiring Connection Diagram:

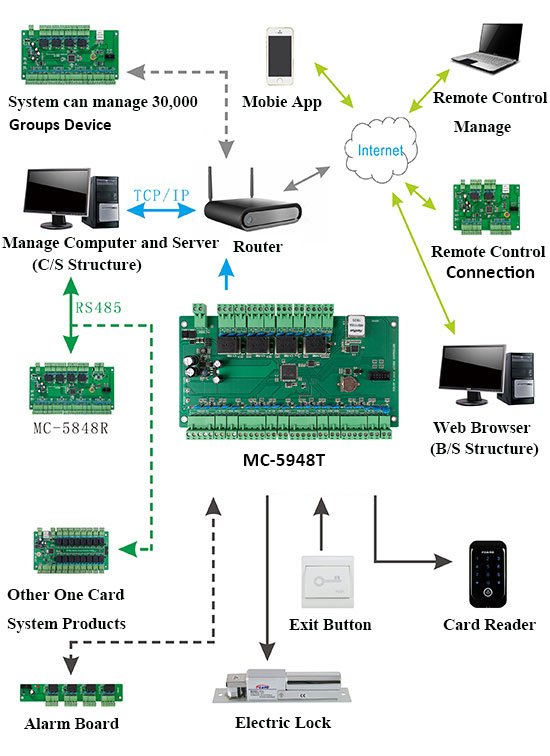

Wiring Diagram:

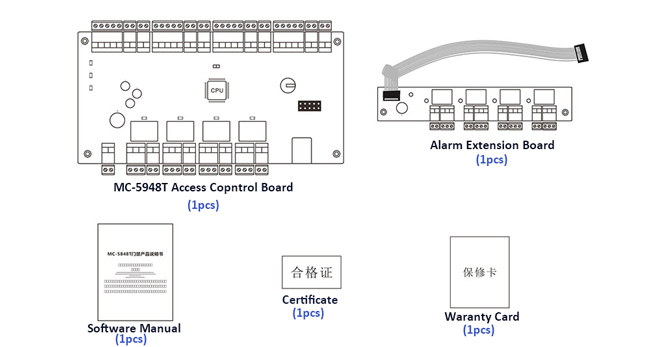

Parts List:

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
