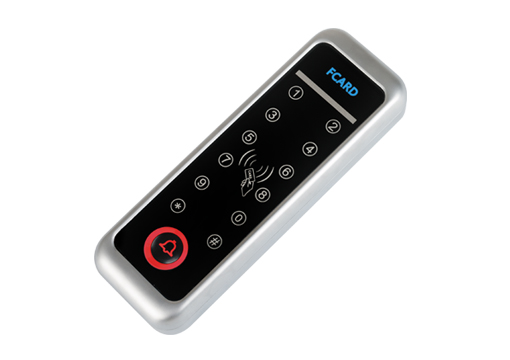

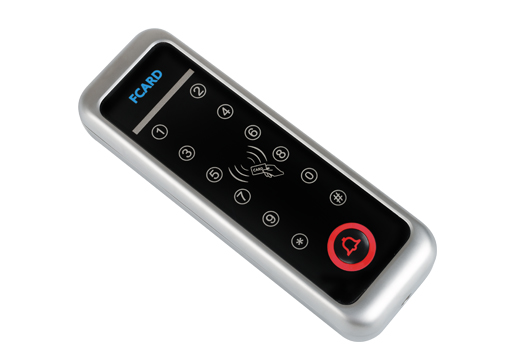

FC-191 Metal Card Reader
The FC-191 metal card reader is composed of ID type or Mifare type, using advanced radio frequency receiving circuit design and embedded microcontroller, combined with efficient decoding algorithms, to complete the 64bits Read-Only EM4100 compatible ID card reading.

The metal card reader has the characteristics of high receiving sensitivity, low working current, single DC power supply, low price, high performance, etc. It is suitable for various radio frequency identification applications such as access control, time attendance, charging, and anti-theft

Product Introduction


FC-191 Metal RFID Card Reader is composed of ID type and Mifare type. The card reader uses advanced radio frequency receiving circuit design and embedded microcontroller, combined with efficient decoding algorithms, to complete the reading of 64bits Read-Only EM4100 compatible ID cards. FC-191 Metal RFID Card Reader Mifare type adopts 13.56MHz reading frequency, combined with encryption algorithm to support the reading of zero sector data of MIFARE format Mifare card. The card number is obtained after calculation and decoding. The misread rate of metal access control card reader is less than 0.01%. Support keyboard, support Wiegand output keyboard commands, this series of products have the characteristics of high receiving sensitivity, low working current, single DC power supply, low price, high performance and so on.

FC-191 Metal RFID Card Reader is suitable for access control, time attendance, charge, anti-theft and other radio frequency identification applications.

Product Parameters

Working Mode: WG 26/34

Reading Speed: < 0.2s

Reading Interval: < 0.5s

Reading Distance: 0-60mm (ID card)  0-50mm (Mifare card)

Reading Type: ID card/ Mifare card

Reading Frequency: 125KHz/13.56Mhz

Working Temperature: -0℃ to +65℃

Working Humidity: 10-90%


Working Voltage: DC 12V

Build in LED: Three groups of LED

Build in Speaker: Buzzer

Working Current: 120-180Ma

Networking: WG 16/34 bits standard format data output

Communication Distance: 100m

Transfer Way: Real time

Shell Material: zinc alloy + acrylic board

Dimensions: length 133mm, width 45mm, height 19mm

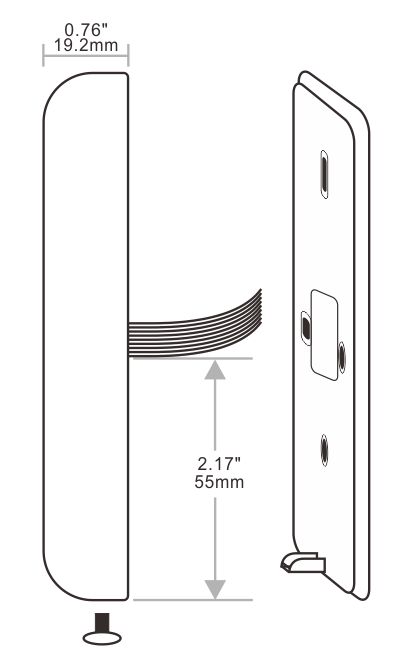

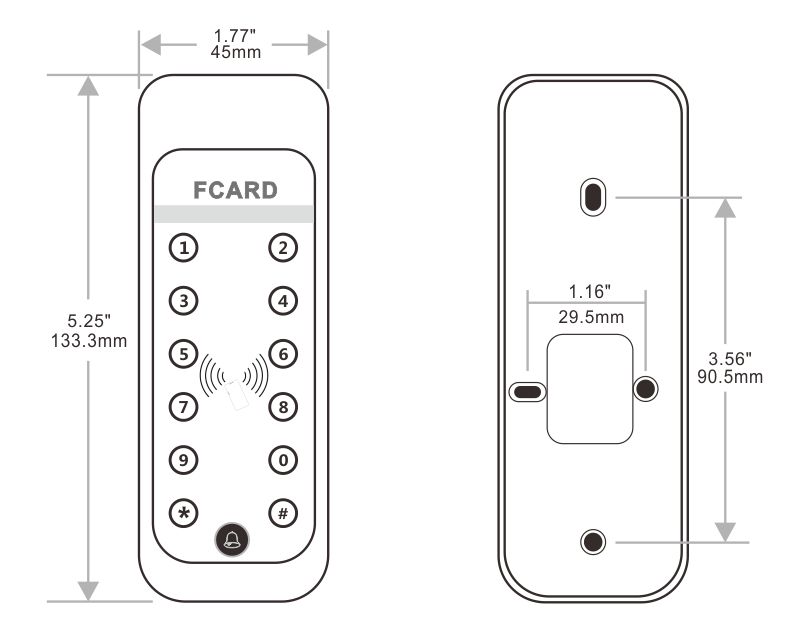

Product Size:

Metal RFID Card Reader Product Size

Metal RFID Card Reader


Instruction:

When the card is close to the metal card reader, the reader’s red light turns to green and then flashes again to red. The buzzer sounds once to indicate sending data. For the same ID card, the interval between two card readings is shorter than 500ms. Improper card reading nor sending data. After reading the card, if the card is still in the radio frequency card, the reader will not give any prompts and will not send data. Different cards enter the RF card response area, and the card reader will read the card continuously and output data.


Wiring Instructions:

FC-191 metal access control card reader provides WIEGAND26 or 34 format output, provides LED control and BEEP control circuit.


Metal Card Reader Wiring:

FC-191 card reader support WG26/34 format output, supply LED control and BEEP control line.

+12V: DC10.8-13.8V Standard DC12V

GND: Ground

DO: Data O

D1: Data 1

BUZ: Buzzer

FOR: WG26/34

Metal RFID Card Reader wiring

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
