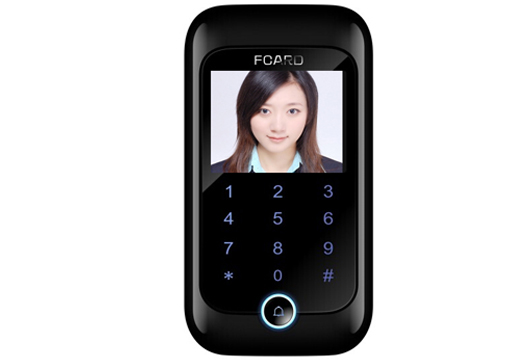

FC-3882 series time attendance access controller is mainly divided into two models: FC-3882E and FC-3882M. FC-3882E supports EM H4100 format compatible ID cards, and FC-3882M supports MF1 format compatible Mifare cards.
FC-3882 series time attendance access controller is a multi-functional access control time attendance device specially designed for offices, factories, schools, institutions, etc. This model has multiple functions and a wide range of applications. In recent years, it has been favored by many users. FC-3882 series are mainly divided into two models: FC-3882E and FC-3882M. FC-3882E supports EM H4100 format compatible ID cards, and FC-3882M supports MF1 format compatible Mifare cards.
FC-3882 supports 2500 cardholders, and can cyclically store 24,500 card swiping and alarm events. 32 time periods / 64 time groups / 16 application groups / 8 holiday types / card validity period / card password (6 digits), set password entry, swipe card entry or swipe card + password entry, support duress password and super password entry management, remote control of any door point, multiple alarm event functions: door open timeout, door closed timeout, intrusion alarm, duress alarm, tamper alarm, fire alarm, etc.
FC-3882 is equipped with public short message and personal short message publishing functions, and 16 alarm points can be set at the same time, and the alarm supports working day selection. Built-in clock correction parameters can ensure that the real clock is accurate for a long time. It can be connected to the Internet (up to 250 units) or offline. The longest communication through RS485 network can reach 1200 meters.
System functions:
With FCARD3500 software, FC-3882 supports dynamic electronic map, real-time understanding of the operation of each device, showing whether each door is open or not, whether there is a fire alarm or police warning, you can open the door remotely through the map. The electronic map prompts the card reading details in real time.
The FCARD3500 software management system can support the card-reading and photo-comparison function. The photo-reading photo can be compared with the original person, and it can be recognized whether there is a card reader for attendance and whether it is the card reader. It can effectively eliminate the replacement of card reading attendance and other abnormal situations.
Card Reading Parameters: EM125KH / Mifare 13.56MHz
Reading Speed: 0.1s
Working Power Supply: Voltage DC9-14V(Standard DC12V)
Current: < 200MA
Working Temperature: -10℃~70℃
Working Humidity: 10%-90%
Display Color: Green/Blue/White LCD59 x 49DOTS
Data Storage: 2500 users, 25,000 records
Communication Way: RS485/ Reading Distance 1200m/Baud Rate 19200
Drive Output: 7A Relay Output COM, NO, NC
Size: 158MM x 85MM x 21MM
Features:
1. Password to open the door, time attendance access control, door breaking alarm, card reading to open the door, Chinese and English display, electronic map, wrong line protection, pre-full prompt, name display.
2. Multifunctional time attendance access controller and brand new personal and group SMS messages, while supporting the latest FCARD3500 system software.
Interface configuration:
A set of built-in card reader (EM card or Mifare).
One set of relay output.
A set of WIEGAND26 card reader interface.
A group of door sensor signal access.
One set of exit switch access.
One set of alarm output interface.
A group of fire alarm access.
A group of doorbell interfaces.
A group of RS485 communication interface.

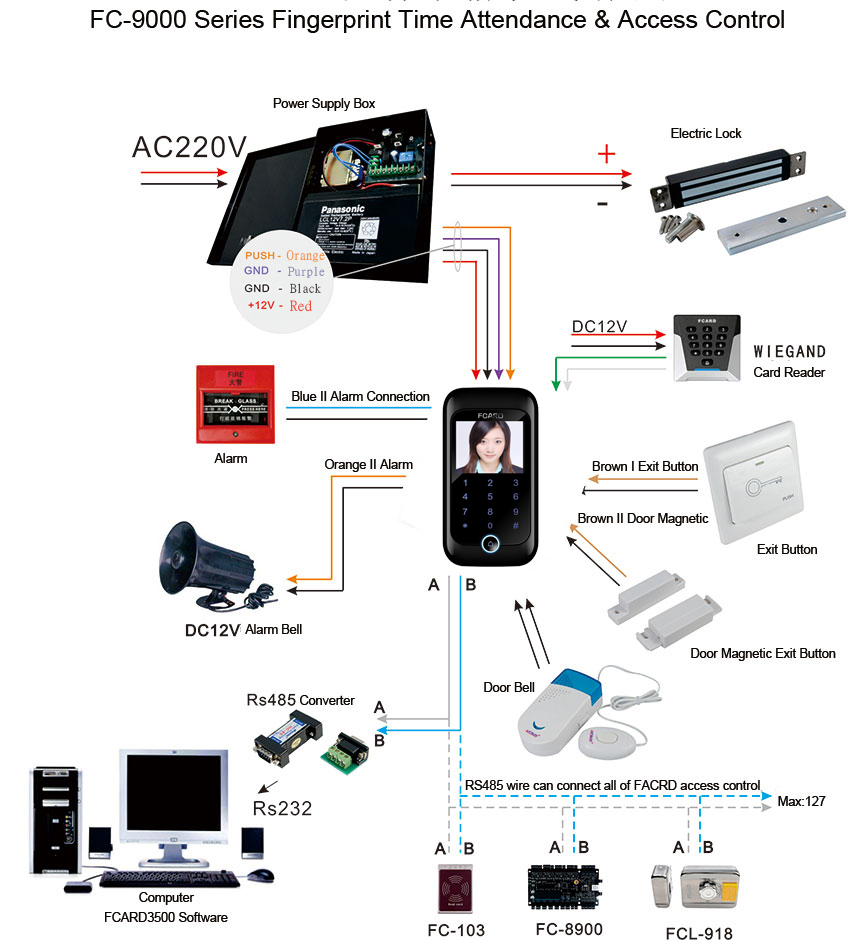

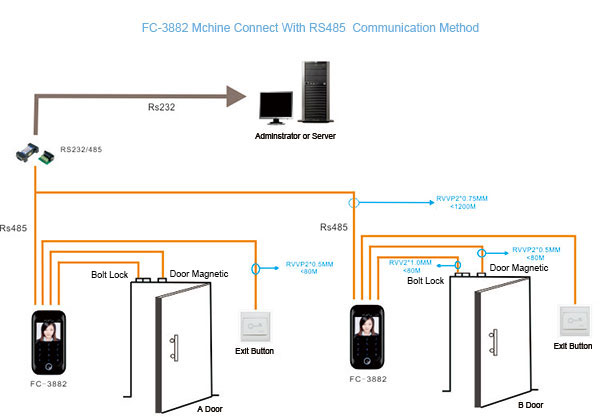

Wiring Diagram:
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
