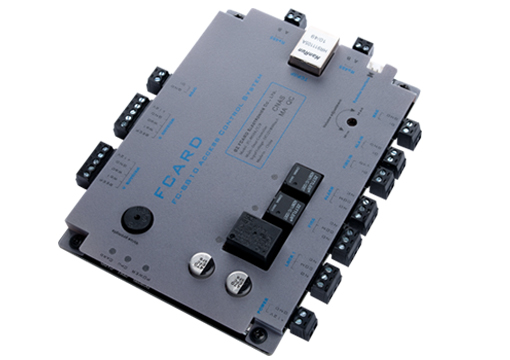

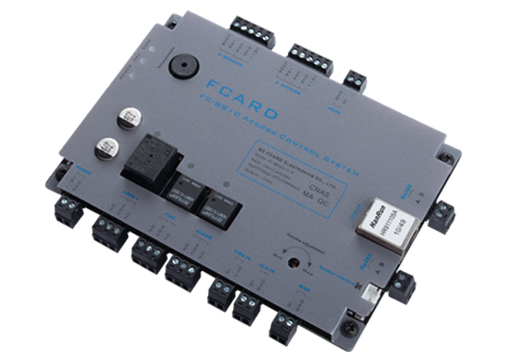

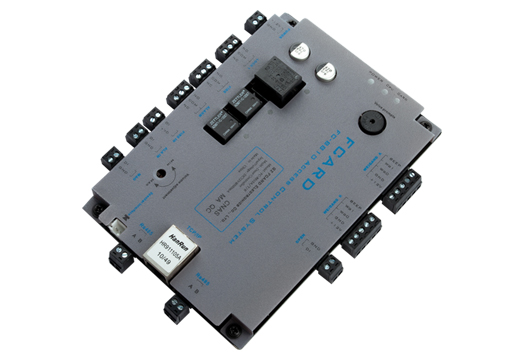

FC-8810A One Door Access Control Board
FC-8800 series access controller not only has a common access control function, it also provides other similar products on the market no or few of the practical functions, specific features see the product "Features"

FC-8800 series access control products mainly include: FC-8610 professional time attendance access controller, FC-8810 one door access control board, FC-8820 two doors access control board, FC-8880 base station two doors access control board, FC-8840 four doors access control board, FC-8832 elevator access control board, etc., a total of 16 models.

Product Introduction

One Door Access Controller

FC-8800 series access control board is a new generation of intelligent network access control products. The network processor is combined with the development and design of mass storage to realize the real networked data exchange, high-speed data calculation and user data management. FC-8800 series access control board not only has commonly used access control functions, it also provides some practical functions that other similar products on the market do not have or rarely have. For specific functions, please refer to the product "function introduction".

FC-8800 series access control products mainly include: FC-8610 professional time attendance access controller, FC-8810 one door access control board, FC-8820 two doors access control board, FC-8880 base station two doors access control board, FC-8840 four doors access control board, FC-8832 elevator access control board, etc., a total of 16 models. The suffix of the product model is A-type controller, which means it adopts RS485+TCP/IP dual communication mode; the suffix is R-type controller which means it adopts RS485 communication mode; the suffix is W-type controller means it adopts microwave high-frequency wireless communication mode. All the above models can be mixed and networked regardless of the communication method, and managed through a set of software to realize the real one card pass management application of one card and one library.

All of the above models can use FCARD3500 or newer version of the one card pass management system software. The software system supports ACCESS and SQL database, supports local connection communication, and can also remotely communicate with the Internet.

Product Parameters

Model: FC-8810A

Door Number: 1

Oper.Temp: -25℃-70℃

Humidity: 10-90%RH

Voltage: DC12V <500mA

Capacity: 156k users, 250k records

Upgrading: 312k users, 500k records

Off Power Safe: Flash memory available, 10 years

Data Protection Preservation

Wiegand I/O: Wiegand 26/34

Port No.: 2 Wiegand card reader ports

Distance: 100M communication distance

Other I/O: 1 push button&1 magnet release

Lock Relay: 1 set

Current: Max 250V, 6A

Alarm Relay: Two group

Language: Chinese (Pre-set), English, Cantonese

Other Language could be Pre-booked

System Function

FC-8880T base station two doors access control board supports remote base station intelligent reporting, inbound and outbound monitoring, 6-in and 6-out monitoring control point expansion ports in the station, and TCP/IP, GPRS or 3G communication can be used. , Voice navigation and other common functions of computer room and base station.

Common Function

Professional Function

New Function

Offline operation, card reader to open the door, password to open the door, time control password valid, card reading + password to open, time control card reading + password to open, manual input of card number + password to open, first card to open, normally open card to open, remote open, remote Door closed, timed door open, time period normally open, real-time monitoring, abnormal monitoring, electronic map, duress alarm, fire linkage, police alarm, intrusion alarm, illegal card reading alarm, lost card report, blacklist card reading alarm, door open overtime prompt/ Alarm, anti-passback return and trailing prevention, batch upload, small amount upload, double door interlock, multi-door interlock, multi-card door opening, keyboard operation, emergency door closing, access control and attendance, 64 groups of door opening periods, holidays, etc.
Card return, record restoration, anti-detection lock, card reading verification, full card opening, full card opening + automatic registration, main board buzzer switch, clock self-repair, internal and external authentication opening, 3+1 authentication opening the door, number of people inside the door Inquiry, telephone connection notification after alarm, the number of days the device has been running, remote hardware program upgrade, etc.
In addition to the above functions, we have also added technologies that are not available or rare in other similar products on the market, such as: card reader circuit abnormality detection and prompt, voice prompt guidance, system environment temperature detection, input Power supply temperature monitoring, trial period, online access guard patrol, advance reminder of card expiry date, intelligent clock error self-correction every day, exit switch controlled by time period, remote card reading and photo taking, anti-theft alarm host function, card reading interval setting, door sensor New functions such as alarm time period management, communication encrypted data, card valid times, self-expanding capacity, and Wiegand keyboard issuance. FC-8800 series access control board is one of the most advanced access control products at home and abroad.

One Door Access Controller

FC-8800 series access control board adopts FCARD3500 Ver6.30 or above one card pass management system as the system software. The system software supports two databases, SQL and ACCESS, and supports WIN XP, WIN 2003, WIN7 and other system platforms.

FCARD3500 one card pass management system adopts nine modular structure designs: system data module, system graphic monitoring module, personnel management module, access control system module, time attendance system module, elevator access control module, guard tour system module,consumption management module equals one.

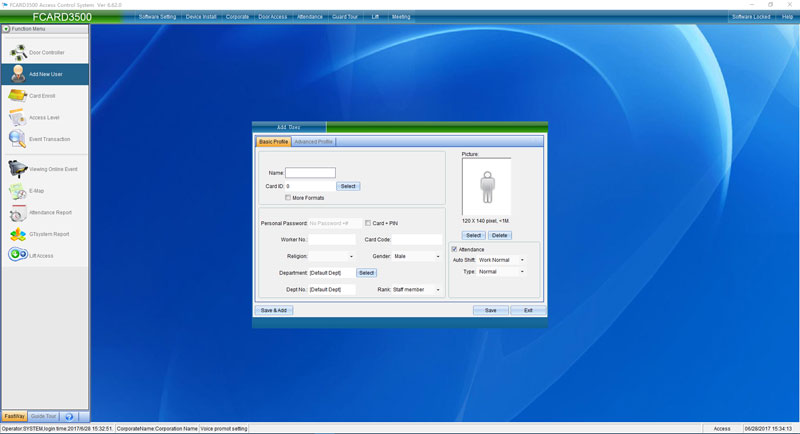

Software Photoes:

One Door Access Controller Software Photoes


One Door Access Controller


One Door Access Controller


One Door Access Controller


FC-8800 series controller adopts FCARD3500 Ver6.30 or above one card pass management system as the system software. The system software supports SQL and ACCESS databases, and supports WIN XP, WIN 2003, WIN7 and other system platforms.

FCARD3500 one card pass management system adopts nine modular structure designs: system data module, system graphic monitoring module, personnel management module, access control system module, time attendance system module, elevator access control module, guard tour system module,consumption management module equals one.

This series is equipped with RS485, TCP/IP interface, Chinese voice, fire alarm input and output, bandit alarm input and output, temperature monitoring, voltage monitoring, fault reset, simultaneous communication of multiple machines and other functions.


Parameters:

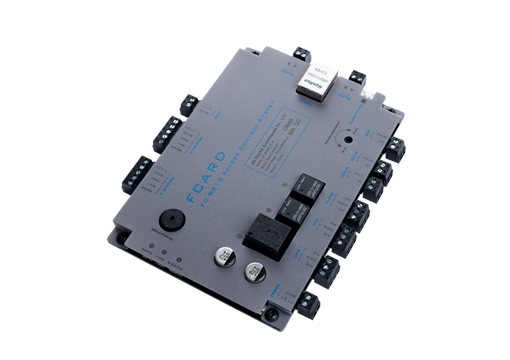

FC-8810 One Door Access Control Board

Size:150×105×20mm


Manage 1 door, support 52,000 user records, 200,000 event records (can storage reading, alarm, push button, door sensor, system operation etc records) provide 3 groups lock relay output(1 group lock relay output, 2 groups alarm relay output), 1 group door sensor, 2 groups WG26, 34 interface, 2 groups RS485 and 1 group TCP/IP, support DC9V-14V, working current <300mA. This controller provides all the functions marked above "System Function".

This series products all has RS485, TCP/IP interface, Chinese voice, fire alarm input and output, bandit alarm input and output, temperature monitoring, voltage monitoring, fault reset, multi machine simultaneous communication and other functions.


Accessories:

One Door Access Controller Accessories

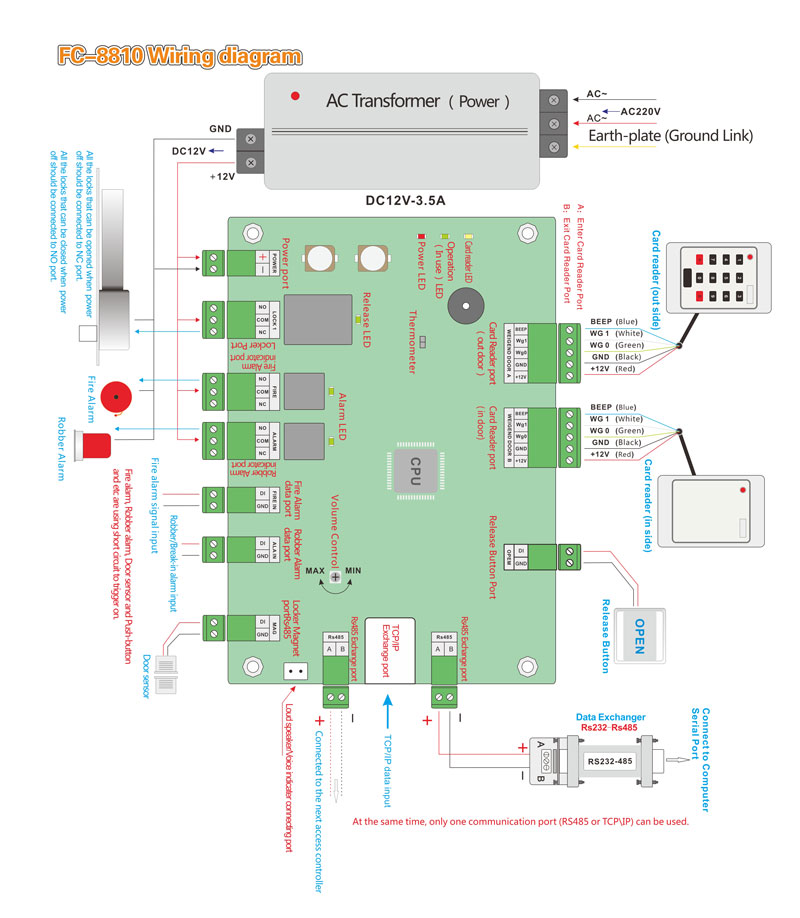

Wiring Diagram:

One Door Access Controller Wiring Diagram


One Door Access Controller

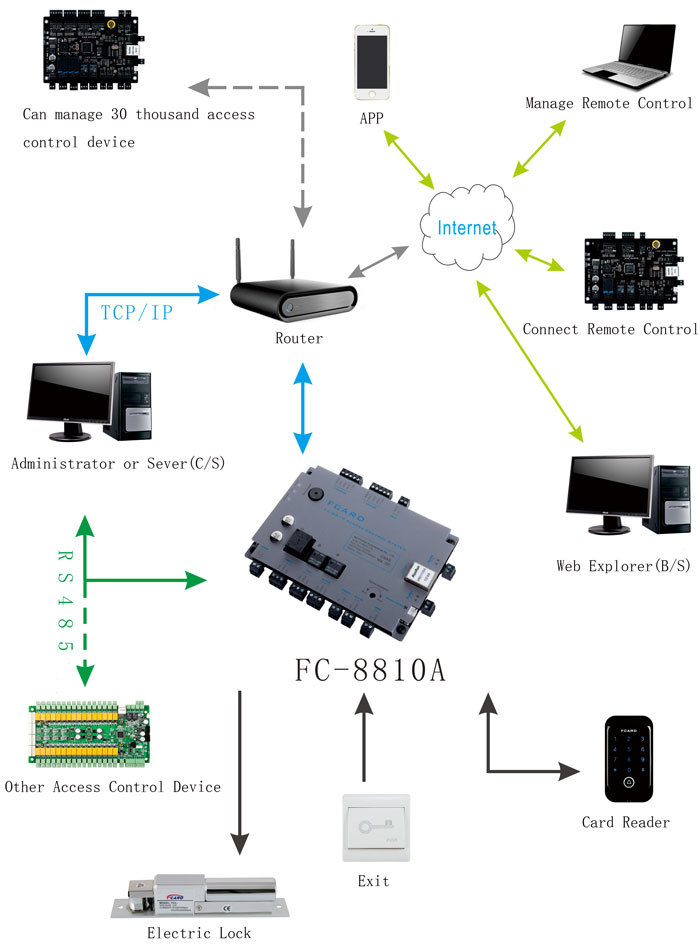

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
