FC-2812E supports proximity card (EM compatible ID card, MF1 compatible Mifare card, HID format ID card) to open the door, and wireless remote control to open the door.
Embedded access control FC-2812E is a multi-functional intelligent embedded access control specially designed for electric door locks and security systems and has been upgraded several times. It is mainly used with building intercom hosts. FC-2812E supports proximity cards (EM compatible ID Card, MF1 compatible Mifare card, HID format ID card) to open the door, wireless remote control to open the door, the FC-2812E programming setting is carried out directly on the infrared keyboard, easy to operate, simple to use, and high in security. It has the functions of adding and deleting cards, and it is convenient to add and delete cards. FC-2812E has a user capacity of 21,000 users (standard 1,000 users), using EEPROM storage, and information is stored for 10 years without loss.
Application range: Access control device specially modified and installed for various building intercom device.
Working Voltage: DC9-15V
Working Current: < 120mA
Working Temperature: -0℃ - +65℃
Working Humidity: 10-90%
Reading Speed: < 0.2 s
Reading Distance: 0-80mm
Control Output: Dry node relay output, max current 3A
User Capacity: 1000 (Can be extended to 21,000 people)
Exit Switch: Support
Enter/Exit Reading Card: Support
Door Sensor Alarm: Support
Fire Alarm Linkage: Support
Admin Card Manage: Support
Data Backup: Support
Wireless Remote Controller: Support
Alarm Output: Support
Offline Used: Support
Wireless Remote Controller: Support 315MHZ wireless remote controller unlock
Issuing Device: IR remote controller, Admin card issue card
Size: 90L x 55W x 16H mm

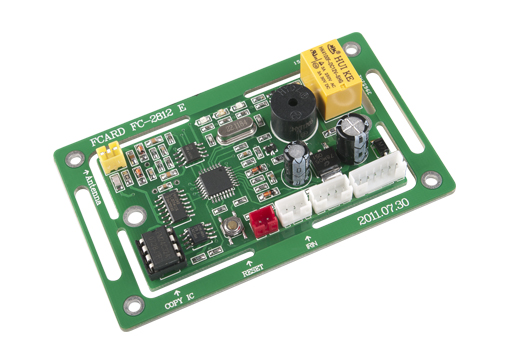

Appearance:
Wiring Connection Diagram:
(Note: Before you connect the device, make sure that the operation is under the state without electricity, so as to avoid device burned due to misconnection or short circuit etc.)
Function:
1. Support large capacity: use EEPROM memory, can independently store 20,000 cards (standard 1,000) data or password data.
2. Support automatic expansion: automatic identify memory capacity and automatic expansion it (just need to change the memory, no need to return manufacturers to upgrade and expand).
3. Support backup function: effectively prevent data loss, other FC-2812 data can be copied to this model device, reduce repeat issue card.
4. Support self protection function: with superior anti-interference ability and self diagnosis, self-protection ability, to ensure the system operation safely.
5. Support door sensor alarm and fire linkage, alarm output, master card to issue/delete card, any card unlock + automatic registration.
Accessories:
Advantage:
1. Designed with multi compatible installation bit, can compatible with more building intercom host.
2. Automatic identify memory capacity and automatic expansion it (just need to change the memory, no need to return manufacturers to upgrade and expand).
3. Backup function, effectively prevent data loss, other FC-2812 data can be copied to this model device, reduce repeat issue card.
4. Various types of cards to meet the needs of more users.
5. Any card unlock + automatic registration, avoid the card can not be recovered and other issues.
Compatible with FCARD one card pass management system. Support: Access Control System, Offline Access Control System, Time Attendance Access Controller , Guard Tour, Consumption Machine, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management,to realize one card pass management system with one card and one database.
