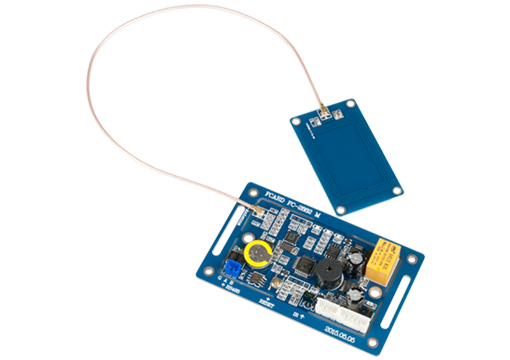

FC-2882M offline embedded access control board
FC-2882M offline embedded access control board is a new multifunctional access control product of FCARD company. It adopts new card reading recognition technology, combined with efficient computing circuit, and is developed to support second-generation Identification cards, residence permits, and encryption Mifare cards as an electronic key, can realize three management modes: network management, offline management, and infrared remote control management. Built-in large memory, supports 80,000 records and 20,000 black and white lists. When the machine adopts offline card writing and issuing mode, the number of personnel registrations is unlimited.
FC-2882M embedded access control is a modern intelligent entrance and exit management control device integrating smart card recognition technology, micro-control technology and other advanced technologies. It adopts PHLIP Mifare non-contact card technology, and data is transmitted through DES (Data Encryption Standard (Data Encryption Standard) algorithm encrypted ciphertext, avoid the problems of traditional security guards such as card theft and copying. This product has stable work, user-friendly design, excellent functions, easy installation, maintainability and operability and is recognized and favored by the majority of security engineering companies and users.
Note: If you use computer management, please refer to the part of the "offline embedded access control board" in the software manual for detailed software operations.
Working Voltage: DC12V/200MA
Reading Distance: 0-6mm
Temperature and Humidity: ﹣0℃ to + 65℃, 20～95%
Reading Frequency: 13.56MHz
Networking: RS485/Offline Management
Exit Switch: 1 group
Door Sensor Switch: 1 group
Alarm Output: 1 group
Relay: 1 group
Card Reader: 1 group
Reading Antenna: 1 group
User Capacity: 20,000 black and white lists (Offline to issue card, user no limit)
Record Capacity: 80,000 (50,000 cards records, 10,000 event records,10,000 alarm records, 10,000 system records)
Appearance Size: 96*45*15mm
Reading Head Size: 53.19*33.22*1.2mm

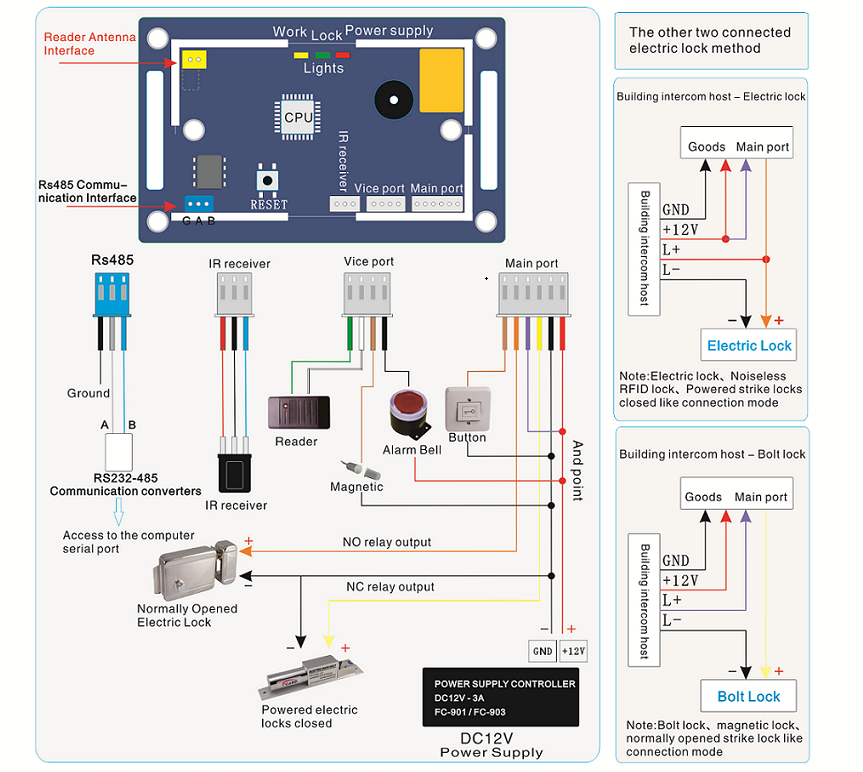

FC-2882M Wiring diagram:
(Note: Before you connect the device, make sure that the operation is under the state without electricity, so as to avoid device burned due to misconnection or short circuit etc.)
Function Introduction:
1. Embedded access control can realize three management methods: network management, offline management, and infrared remote control management.
2. Built-in large memory, support 80,000 records and 20,000 black and white lists.
3. Support second-generation Identification cards, residence permits, and encrypted Mifare cards as electronic keys.
Structure Diagram:
RS485 Structure Diagram:
Offline Products Structure Diagram:
Compatible with FCARD one card pass management system. Support: Access Control System, Offline Access Control System, Time Attendance Access Controller, Guard Tour, Consumption Machine, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management, to realize one card pass management system with one card and one database.
